Cooling Tower Sidestream Filtration System

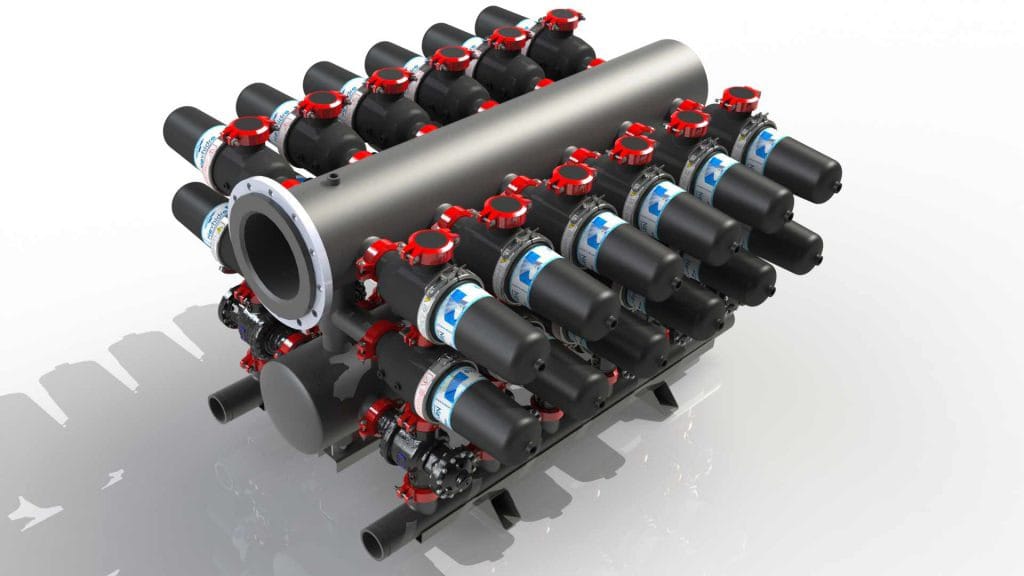

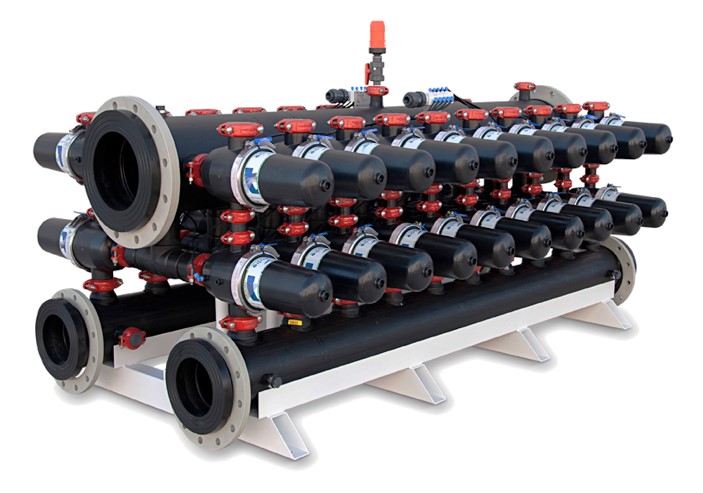

NOVHIDRO Automatic Disc Filtration System.
The NOVHIDRO Automatic Filters have an innovative and intelligent design, which gives them physical qualities capable of solving all the previous problems of this type of filters, which were being displaced by complex automatic mesh filtration equipment, sand filters and combinations of both systems.
The NOVHIDRO Automatic Filters incorporate unprecedented functionality, simplicity and versatility in their design which allow to reduce time of installation and maintenance and replacement materials in a very considerable way and also all these tasks can be performed quickly and safely.
- WATFLOW SYSTEM incorporated as standard.
- Adjustable hydro-cyclone effect.
- Conical upper body.
- Does not incorporate a hydraulic system.
- Easy opening and removal of the cartridge.
- Manometer intakes included.
- Minimum body thickness of 10 mm.
- Micron rating from 5 to 500 micrometers.
- Considerable reduction of used space.
In case of low flow we can regulate it with the patented WATFLOW SYSTEM, which allows you to progressively graduate the inlet flow to the filter, by converting and adjusting the radial entrance of the water in tangential entry.
In addition, the higher the flow rate and the turbidity of the raw water, the more we will use this system to increase the centrifugal velocity of the water at the filter inlet and obtain the desired result regardless of the flow rate and the type of water.
The water inside the filter, due to the depression formed inside the cartridge, passes through the disks, which retain the particles in suspension and perform the filtering function.
Watflow system has among its spectacular qualities:
- Reaching degrees of filtering to 5 microns.
- Running the backwash as low as 1 bar.

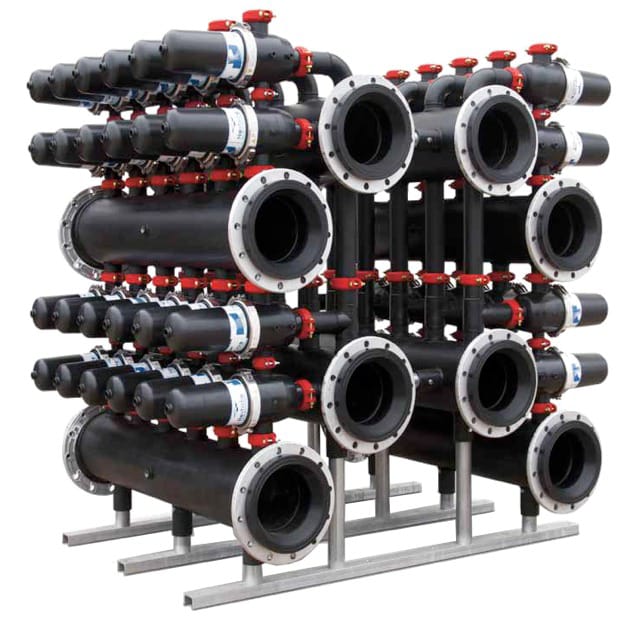

- Reducing equipment size by making tower configurations.
- Controlling centrifugal water speed inside the filter.
- Avoid frequent manual cleaning with acids or other chemicals.
